GPS module

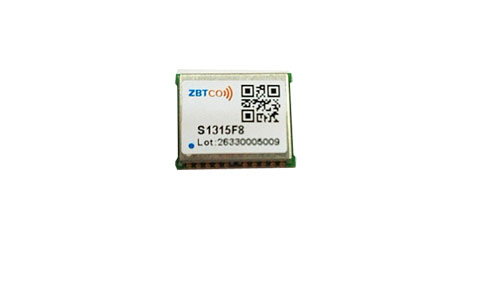

Smallest S1315F8 gps module
Details
：
Support QZSS, WAAS, MSAS, EGNOS, GAGAN
16 million time-frequency hypothesis testing
-148dBm cold start sensitivity
-165dBm tracking sensitivity
29 second cold start TTFF
3.5 second TTFF with AGPS
1 second hot start
2.5m CEP accuracy
Multipath detection and suppression
Jamming detection and mitigation
7-day extended ephemeris AGPS
Contains LNA, SAW Filter, TCXO, RTC Xtal,
Regulator
Works with active and passive antenna
On board active antenna short protection
On board active antenna detection
Complete receiver in 12.2mm x 16.0mm size
Operating temperature -40 ~ +85ºC
Pb-free RoHS compliant
Applications
Navigation and asset tracking
Timing reference
Features
Support QZSS, WAAS, MSAS, EGNOS, GAGAN
16 million time-frequency hypothesis testing
-148dBm cold start sensitivity
-165dBm tracking sensitivity
29 second cold start TTFF
3.5 second TTFF with AGPS
1 second hot start
2.5m CEP accuracy
Multipath detection and suppression
Jamming detection and mitigation
7-day extended ephemeris AGPS
Contains LNA, SAW Filter, TCXO, RTC Xtal,
Regulator
Works with active and passive antenna
On board active antenna short protection
On board active antenna detection
Complete receiver in 12.2mm x 16.0mm size
Operating temperature -40 ~ +85ºC
Pb-free RoHS compliant
Applications
Navigation and asset tracking
Timing reference
gps module S1315F8
