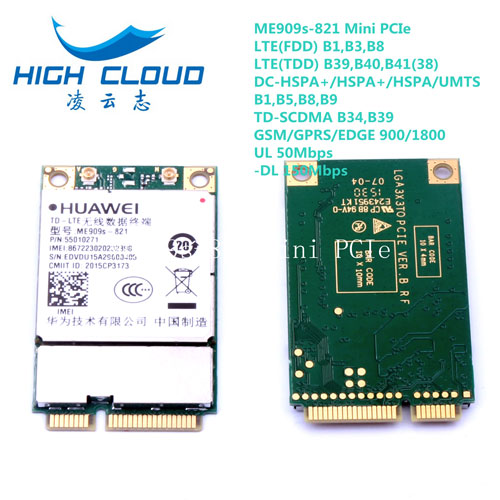

4G ME909s-821 Mini PCIe module
ME909s-821 is the first LTE cat4 module based on Hi-Silicon chipset. Which is high-quality designed LTE module in small size and Huawei standard LGA form factor, especially for industrial-grade M2M applications such as vehicle telematics, tracking, mobile payment, industrial router, safety monitor and industrial PDAs.
ME909s-821 supports 150Mbps downlink data rate, including enhanced features like FOTA, USSD and Huawei enhanced AT commands.
ME909s-821 supports China region LTE Bands including both FDD-LTE & TDD-LTE, and has two different form factor: LGA and Mini PCIe form factor.
With Huawei pin-to-pin form factor, it is easy to migrate from MU609, MU709 or ME909u family to ME909s-821.
All Huawei modules comply with the RoHS directive and Regional certification.
|
|
|
|
|
Mini-PCIe |
|
|
ME909s-821 Mini PCIe: LTE (FDD): B1,B3,B8 LTE (TDD): B38, B39,B40,B41 DC-HSPA+/HSPA+/HSPA/UMTS : B1, B5, B8,B9 TD-SCDMA: B34, B39 EDGE/GPRS/GSM : 900/1800 MHz |
|
|
DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps LTE TDD: Downlink:112Mbps, Uplink: 10Mbps LTE FDD: Downlink:150 Mbps, Uplink: 50 Mbps @Bandwidth 20M |
|
|
Mini PCIe interface Antenna interface USB 2.0 High speed PCM Voice SIM Card LED Power supply Reset |
|
|
3.2 V to 4.2 V (3.8 V recommended) |
|
|
-40℃ to 85℃ |
|
|
PCM Voice DTMF |
|
|
CDC-ECM FOTA Firmware Update via USB Embedded UDP/TCP/FTP(s)/HTTP(s) stack High-speed UART CMUX Sleep mode |
|
|
Linux, Android, WinCE, Windows 8/10 |
|
|
CCC NAL SRRC RoHS & WEEE Compliant |
