SIMCOM

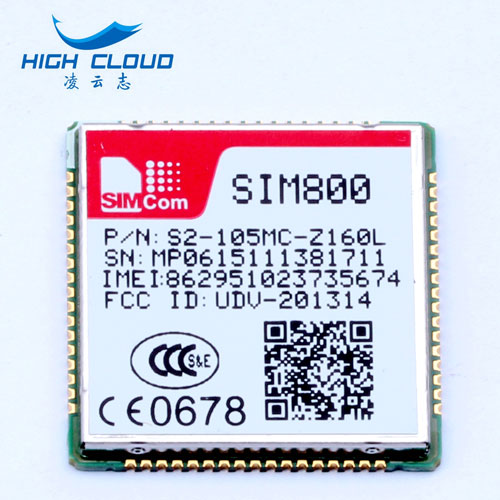

SIM800 module
Details
：
SIM800 is a complete Quad-band GSM/GPRS solution in a SMT type which can be embedded in the customer
applications.
SIM800 support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power
consumption. With tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design. Featuring
Bluetooth and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: compliant with 3.0+EDR
•Dimensions: 24*24*3mm
•Weight: 3.14g
•Control via AT commands (3GPP TS 27.007,
27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
•SMS cell broadcast
•Text and PDU mode
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•E-MAIL
•DTMF
•Jamming Detection
•Audio Record
•TTS (optional)
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•AMR
– Half rate (HR)
– Full rate (FR)
•Hands-free operation
（Echo suppression）
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•GCF
•FCC
•ROHS
•REACH
applications.
SIM800 support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power
consumption. With tiny size of 24*24*3 mm, it can fit into slim and compact demands of customer design. Featuring
Bluetooth and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
General feature
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Compliant to GSM phase 2/2+
– Class 4 (2 W @ 850/900MHz)
– Class 1 (1 W @ 1800/1900MHz)
•Bluetooth: compliant with 3.0+EDR
•Dimensions: 24*24*3mm
•Weight: 3.14g
•Control via AT commands (3GPP TS 27.007,
27.005 and SIMCOM enhanced AT Commands)
•Supply voltage range 3.4 ~ 4.4V
•Low power consumption
•Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
•PBCCH support
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD up to 14.4 kbps
•USSD
•Non transparent mode
Specifications for SMS via GSM/GPRS
•SMS cell broadcast
•Text and PDU mode
Software features
•Embedded TCP/UDP protocol
•FTP/HTTP
•MMS
•DTMF
•Jamming Detection
•Audio Record
•TTS (optional)
•Embedded AT (optional)
Specifications for voice
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
•AMR
– Half rate (HR)
– Full rate (FR)
•Hands-free operation
（Echo suppression）
Interfaces
•Analog audio interface
•PCM interface(optional)
•SPI interface (optional)
•RTC backup
•Serial interface
•USB interface
•Interface to external SIM 3V/1.8V
•Keypad interface
•GPIO
•ADC
•GSM Antenna pad
•Bluetooth Antenna pad
Compatibility
AT cellular command interface
Certifications(Plan):
•CE•GCF
•FCC
•ROHS
•REACH
GSM/GPRS SIM800 module
