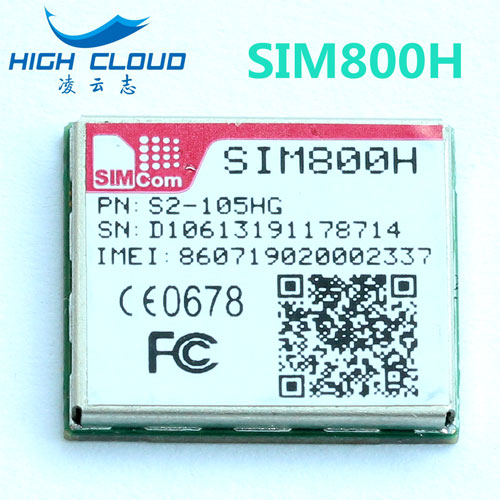

SIM800H GSM GPRS Modules
SIM800H is a Quad band GSM/GPRS module, LGA encapsulation. Its performance is stable, compact appearance,high cost performance, can meet the various needs of customers.
SIM800H working frequency for GSM/GPRS / 1800/1900850/900 MHZ, low-power can realize voice, SMS, data and faxtransmission of information. SIM800H size is 15.8 * 17.8 * 2.4mm, can be suitable for all kinds of compact product designrequirements. AT the same time through bluetooth/FM and Embedded AT advanced features, such as can save costs forcustomers and rapid development will bring more convenient.
Key feature
•Quad band 850/900/1800/1900MHz
•GPRS multi-slot class 12/10
•GPRS mobile station class B
•Meet the GSM 2/2 + standard
– Class 4 (2 W @850/900MHz
– Class 1 (1 W @1800/1900MHz)
•bluetooth:compatible3.0+EDR
•FM:band limits 76~109MHz,Tuning step by step50KHz
•Dimensions:15.8*17.8*2.4 mm
•weight:1.35g
•Via ATcommand control 3GPP TS 27.007, 27.005 and SIMCOM
enhance ATcommand set)
•SIM USAT
Supply voltage range3.4~4.3v
•Low power
•Operating temperature range : -40 ~+85 °C
FAX
•Group 3, class 1
Data transmission
•GPRS class 12,MAX85.6 kbps(upload/download)
•Support PBCCH
•Coding schemes CS 1, 2, 3, 4
•PPP-stack
•CSD reach14.4 kbps
•Support USSD
•The passthrough
SMS
•point-to-point MO and MT
•SMS broadcast
•TXT and PDU model
Software feature:
•0710 MUX
•Embadded TCP/UDP
•FTP/HTTP
•MMS
•E-mail
•DTMFdetection
interference detection
•Record
•TTS
•Embedded AT
Voice
•Tricodec
– (HR)
– (FR)
– (EFR)
•AMR
– (HR)
– (FR)
•Support echo suppression algorithm
Interface
The LGA 88 welding plate
•Two way analog audio interface
•PCM interface
•Support RTC
•Serial interface
•USB interface
•SIM card interface(3V/ 1.8V)
•keyboard interface
•GPIO
•ADC
•GSM antenna pad
•Bluetooth antennapad
•FM antenna pad
Compatibility
•AT cellular command interface
Certification
•CE
•GCF
•FCC
•ROHS
•REACH
