GSM +GPS antenna
Combo antenna
Magnetic mounting
SMA connector

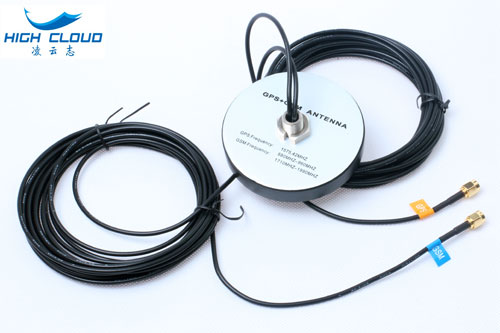

GSM+GPS combination antenna

Dieletric Antenna

Center Frequency    1575.42MHz±3 MHz

V.S.W.R            1.5:1

Band Width          ±5 MHz

Impendence          50 ohm

Peak Gain           >3dBic  Based on 7×7cm ground plane

Gain Coverage       >-4dBic at –90 degree<0<+90 drgree(over 75% Volume)

Polarization               RHCP

GSM Antenna

Center Frequency     824MHz~894MHz(AMPS),880 MHz~960MHz(GSM)

                    1710MHz~1990MHz

V.S.W.R              2.0:1

Impendence           50 ohm

Typical Gain

LNA/Filter

LNA Gain(Without cable)    28dB Typical

Noise Figure                1.5dB

Filter Out Band Attenuation (f0=1575.42 MHZ)

7dB min          f0+/-20MHZ ;

20dB min         f0+/-50MHZ;

30dB min         f0+/-100MHZ

V.S.W.R                 <<2.0

DC Voltage               2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other

DC Current               11mA  Max

Mechanical

Weight                  <240gram

Size                   80 mm(D)×13mm(H)

Cable                   GPS-----RG174  2meter, 5meter long or other

                         GSM-----RG174  2meter, 5meter long or other

Connector                GPS-----SMA/SMB/SMC/BNC/FME/TNC/MCX /MMCX or other

GSM----SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX or other

Mounting                Adhesive /Magnetic/Screw Mounting

Housing                  Black

Environmental

Working Temp.                -40~+85

Storage Temp.                -45~+100

Vibration              Sine sweep 1g(0-p)10~50~10Hz each axis

Humidity              Humidity95%~100%RH

Weatherproof           100%Waterproof
