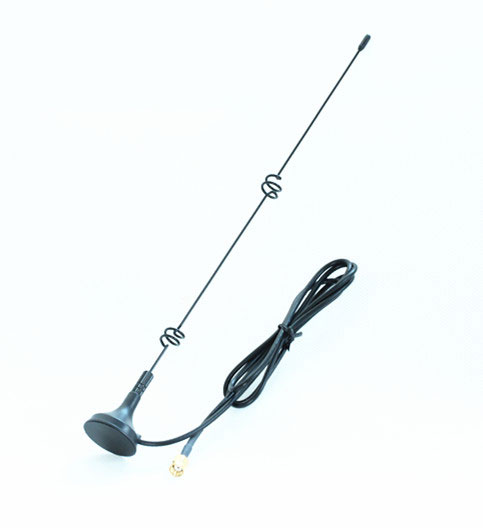

2.4G magnetic antenna
Details
：
2.4G antenna
Product parameters：
1.Frequency rang: 2400-2500MHz
2.Bandwidth: 50MHz
3.Input Impedance: 50Ω
4.VSWR: ≤1.5
5.Gain: 7.0dBi
6.Max power: 50W
7.Polarization: Vertical
8.Lightning protection: DC ground
9.Working Temperature: -40~60℃
10.Storage temperature: -20~40℃
11.Connector model:SMA/SMB/MCX/MMCX/CRC9/BNC/TNC/N
12.Size:30D*225H
13.Weight:52g
Product parameters：
1.Frequency rang: 2400-2500MHz
2.Bandwidth: 50MHz
3.Input Impedance: 50Ω
4.VSWR: ≤1.5
5.Gain: 7.0dBi
6.Max power: 50W
7.Polarization: Vertical
8.Lightning protection: DC ground
9.Working Temperature: -40~60℃
10.Storage temperature: -20~40℃
11.Connector model:SMA/SMB/MCX/MMCX/CRC9/BNC/TNC/N
12.Size:30D*225H
13.Weight:52g
2.4G magnetic antenna
