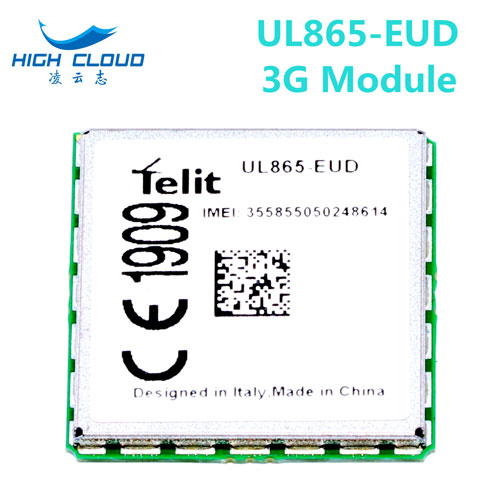

UL865-EUD

UL865-EUD

详细信息 :

Product description

The UL865 is a 3G module in the xL865 family. It is based on the latest Intel chipset to protect the developer’s design investments as a long term availability solution. The UL865 features VQFN packaging that is fully pad-level compatible with its 2G companion, the GL865-DUAL V3.


Key Benefits

Simple drop-in migration and technology upgrade path to 3G high-speed performance for designs currently using the GL865-DUAL V3 • Ideal for fleet management and track-and-tracing application with easy to follow reference designs for pairing with Telit GPS and GPS | GLONASS receivers
• Internet application friendly with integrated TCP/IP and UDP/IP stacks
• Voice-capable for applications requiring digital (DVI) interface
• Complete SMT platform for m2m solutions running the customer application inside the module with embedded Python Script Interpreter
• Over-the-Air firmware update by means Premium FOTA Management
• Battery-friendly 1.8V GPIO

Technical specifications

Product features

• Supported bands
• EUR/EUD variants:
-2 Bands GSM | GPRS EDGE 900 / 1800 MHz
-2 Bands UMTS | HSPA 900 / 2100 MHz
• NAR/NAD variants:
-2 Bands GSM | GPRS | EDGE 850 /1900 MHz
-2 Bands UMTS | HSPA 850 /1900 MHz
• SIM Access Profile
• 3GPP release 7 compliant
• Control via AT commands according to 3GPP TS27.005, 27.007 and customized Telit AT commands
• Serial port multiplexer 3GPP TS27.010
• SIM application Tool Kits 3GPP TS 51.014
• Built in UDP / TCP / FTP / SMTP stack
• Digital voice and SMS
• IP stack with TCP and UDP protocol
• Standard and extended AT command set

Environmental

• Small dimensions 24.4 x 24.4 x 2.6 mm
• Temperature range -40°C to +85°C
• Interfaces
• 8 I/O ports maximum including multifunctional I/Os (1.8 V logic level)
• I2S for digital audio interface
• USB 2.0 HS
• UART
• SPI
• 1.8 V / 3 V SIM interface
• 2 A/D plus 1 D/A converters

Approvals

• RoHS Compliant
• CE, GCF (Europe)
• FCC, PTCRB, IC (North America)

Electrical

• Output power
- Class 4 (2 W, 33 dBm) @ GSM 850 /900
- Class 1 (1 W, 30 dBm) @ GSM 1800 / 1900
- Class 3 (0.25 W, 24 dBm) @ UMTS
- Class E2 (0.5 W, 27 dBm) @ EDGE 850 / 900 - Class E2 (0.4 W, 26 dBm) @ EDGE 1800 / 1900
• Supply voltage
- Nominal: 3.8 VDC
- Range: 3.4 - 4.2 VDC

Software

• Python* application resources
• Python* version = 2.7.2 • Python* script interpreter (module takes the application code directly in the Python* language)
• Memory: 2 MB of NV memory for the user scripts and 2 MB RAM for the Python engine usage

Additional features

• PFM (Premium FOTA Management) Over-The-Air Update service • Remote AT commands
• Event monitor

3G UL865-EUD 模块
